Outdoor Sealed System - Condensing
Key benefits
- HIGH EFFICIENCY
- OUTSIDE ACCESS FOR SERVICING
- 15 - 41 kw
- ONLY 480mm WIDE
- FRONT SERVICING
- HIGH QUALITY CASING CORROSION RESISTANT
- MULTI DIRECTIONAL FLUE OUTLET
- PLASTIC FLUE RANGE UP TO 41 KW CONDENSING ONLY
- PRE PUNCHED PIPE ACCESS POINTS
- CAN BE USED IN TANDEM OPERATIONS
- FROST STAT FITTED FOR PROTECTION
- NO INDOOR OIL LINE
- NON-CONDENSING MODEL AVAILABLE
- OUTDOOR - NO MESS INSIDE !
| KW | 15 - 20 |
|---|---|
| BTU | 50 - 70,000 |
| Size (mm) | H895mm x W480mm x D680mm |
| Weight | 140kg |
| ERP | |
| Heat Class | A |
| KW | 20 - 26 |
|---|---|
| BTU | 70 - 90,000 |
| Size (mm) | H895mm x W480mm x D680mm |
| Weight | 140kg |
| ERP | |
| Heat Class | A |
| KW | 26 - 35 |
|---|---|
| BTU | 90 - 120,000 |
| Size (mm) | H895mm x W480mm x D680mm |
| Weight | 140kg |
| ERP | |
| Heat Class | A |
| Exclusive To Mistral | |
| KW | 35 - 41 |
| BTU | 124 - 140,000 |
| Size (mm) | H895mm x W480mm x D680mm |
| Weight | 140kg |
| ERP | |
| Heat Class | A |
Boiler Information
The Mistral Outdoor Standard Boiler provides a workhorse solution to heating installations. The boiler is fully insulated in a weather resistant casing that is zinc phosphated for optimum corrosion protection and then polyester coated in a highly durable green texture finish to allow the unit to blend naturally with foliage and other external surroundings. All outdoor models are fitted with a frost stat.
The Mistral Sealed System boilers are supplied with the necessary components required for direct coupling to a pre-installed water heating sealed system. The boilers are equipped with a circulating pump, 12 litre expansion vessel, safety valve, pressure gauge and an automatic air vent.
Supplied complete with a multi-directional flue, pre-punched pipe entry points on the back and both sides the stand alone units provide for easy and quick installation. Mistral outdoor boilers have a lockable cabinet door. Servicing can be completed without the need to access the residential area of the property. Backed by the Mistral guarantee of quality the Outdoor Standard boiler range provides a space saving practical heating and domestic hot water solution for the domestic and commercial type business.

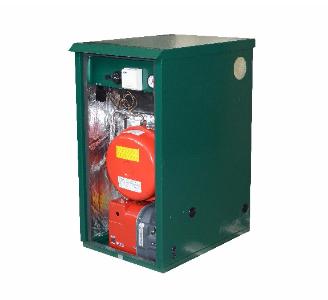

Outdoor Sealed System - Non-Condensing
Key benefits
- STANDARD EFFICIENCY
- OUTSIDE ACCESS FOR SERVICING
- 15 - 41 kw
- 2 OR 4 PORT OPTIONS
- ONLY 480mm WIDE
- FRONT SERVICING
- HIGH QUALITY CASING CORROSION RESISTANT
- MULTI DIRECTIONAL FLUE OUTLET
- PRE PUNCHED PIPE ACCESS POINTS
- CAN BE USED IN TANDEM OPERATIONS
- FROST STAT FITTED FOR PROTECTION
- NO INDOOR OIL LINE
- OUTDOOR - NO MESS INSIDE!
| KW | 15 - 20 |
|---|---|
| BTU | 50 - 70,000 |
| Size (mm) | H895mm x W480mm x D680mm |
| Weight | 125kg |
| ERP | |
| Heat Class | B |
| KW | 20 - 26 |
|---|---|
| BTU | 70 - 90,000 |
| Size (mm) | H895mm x W480mm x D680mm |
| Weight | 125kg |
| ERP | |
| Heat Class | B |
| KW | 26 - 35 |
|---|---|
| BTU | 90 - 120,000 |
| Size (mm) | H895mm x W480mm x D680mm |
| Weight | 125kg |
| ERP | |
| Heat Class | B |
| Exclusive To Mistral | |
| KW | 35 - 41 |
| BTU | 120 - 140,000 |
| Size (mm) | H895mm x W480mm x D680mm |
| Weight | 125kg |
| ERP | |
| Heat Class | B |
Boiler Information
The Mistral Outdoor System Boiler provides a workhorse solution to heating installations. The boiler is fully insulated in a weather resistant casing that is zinc phosphated for optimum corrosion protection and then polyester coated in a highly durable green texture finish to allow the unit to blend naturally with foliage and other external surroundings. All outdoor models are fitted with a frost stat. The Mistral Sealed System boilers are supplied with the necessary components required for direct coupling to a pre-installed water heating sealed system. The boilers are equipped with a circulating pump, 12 litre expansion vessel, safety valve, pressure gauge and an automatic air vent.
Supplied complete with a multi directional flue, pre punched pipe entry points on the back and both sides the stand alone units provide for easy and quick installation. Mistral outdoor boilers have a lockable cabinet door. Servicing can be completed without the need to access the residential area of the property. Backed by the Mistral guarantee of quality the Outdoor Standard boiler range provides a space saving practical heating and domestic hot water solution for the domestic and commercial type business.
To ensure maximum efficiency, the Mistral Non-Condensing range is manufactured using the same centrally located Y Section waterway heat exchanger, as used in the High-Efficiency Condensing models. With the exception of the top mounted condensing unit, all components used, are the same for both, ensuring maximum benefit, efficiency and construction advantages are maintained.
To facilitate low-level options, a spacer is available in place of the Condensing unit.
*** Please see our section headed Condensing / Non-Condensing, to ensure that these products are suitable for your property.
Complies with the EC low voltage and electromagnetic compatibility and efficiency directives.
With high efficiences and low emissions the Mistral range of oil fired boilers are environmentally friendly and as a result economical to run.
All Mistral Boilers are British Made Quality Products so you can be assured of quality.
All our manufacturing is carried out under a stringent quality control system to ISO9001.
